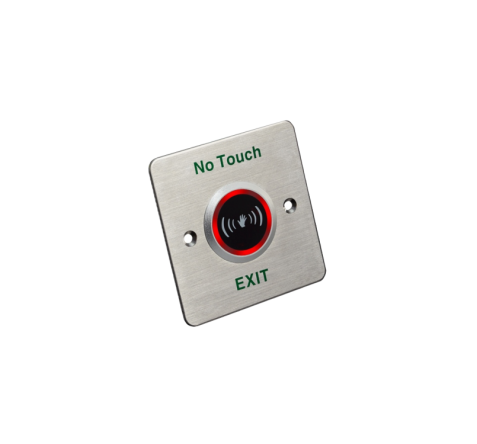

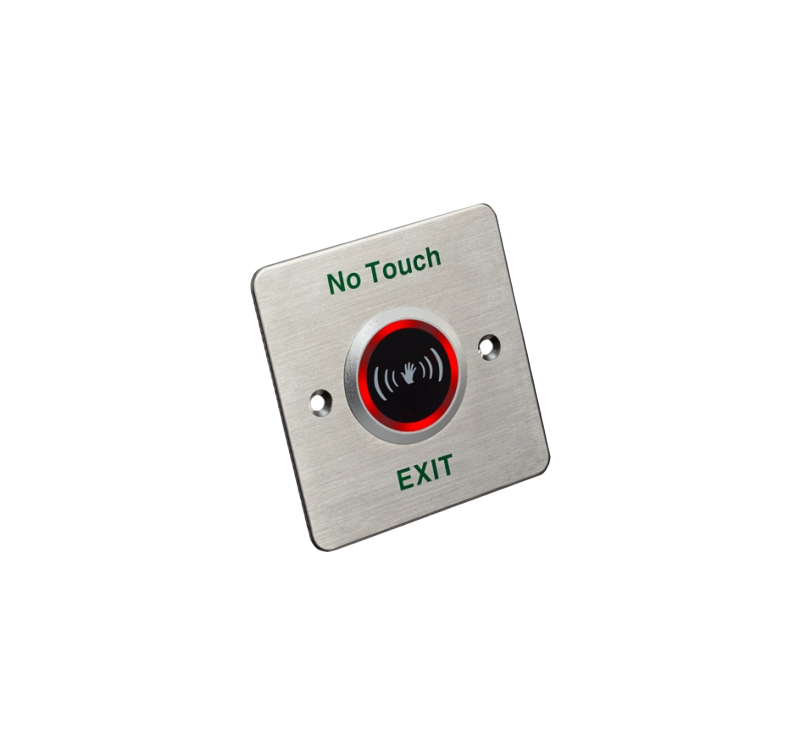

DS-K7P03

Description

• Dimension (L × W × H): 86 mm × 86 mm × 25.7 mm (3.39″ × 3.39″ × 1.01″).
• Input Voltage: 12 VDC.
• Working Current: 40 mA (standby), 70 mA (working).
• Current Rating: 1 A@30 VDC.
• Output Contact: NO/NC/COM contact.
• Panel: Stainless steel.
• Aging Test: Already passed 1 million times aging test.
• Suitable Doors: All kinds of narrow doorframes.
• Working Temperature: -20 °C to 50 °C (-4 °F to 122 °F).
• Working Humidity: 0 to 95% (relative humidity).
• Detection Range (Adjustable): 40 mm to 120 mm (1.57 to 4.72″).
• Time Delay: 1 to 25 s (adjustable)
• LED Indicator Status: Green/red LED indicates working/standby.
• Product Weight: 0.2 kg (0.44 lb)
